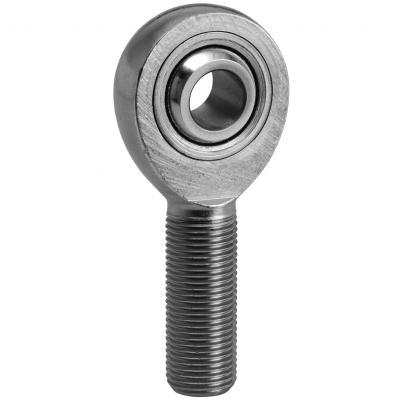

Aurora - Male Rod End 7/16x1/2-20 RH

https://racingwarehouse.com/web/image/product.template/18467/image_1920?unique=70ca32b
High-strength, PTFE-lined male rod end with 7/16-inch bore and 1/2-20 right-hand thread, featuring a steel body with zinc oxide finish.

47.99 47.99 USD 47.99

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specification

Brand
Aurora
Item Number
AURXAM-7T
Bore Diameter
7/16 in
Thread Size
1/2-20 in
Thread Direction
Right Hand
Body Material
Heat-treated alloy steel
Race Material
Heat-treated alloy steel
Ball Material
Heat-treated, hard chrome-plated alloy steel
Lining Material
PTFE fabric
Finish
Zinc oxide
Construction
3-piece
Static Load Capacity
23,452 lbs
Misalignment Angle
12 degrees
Overall Length
4.0 in
Head Diameter
1.55 in
Head Width
0.7 in
Weight
0.23 lbs

Description


The Aurora Male Rod End 7/16x1/2-20 RH is a high-strength, precision-engineered component designed for demanding applications. Featuring a 7/16-inch bore and 1/2-20 right-hand male thread, this rod end is constructed with a heat-treated alloy steel body and race, ensuring durability and reliability. The ball is made from heat-treated, hard chrome-plated alloy steel, and the race incorporates a self-lubricating PTFE fabric lining for maintenance-free operation. Finished with a zinc oxide coating, this rod end offers enhanced corrosion resistance. Ideal for use in various mechanical systems requiring precise articulation and load-bearing capabilities.

Disclaimer


Product specifications and availability are subject to change without notice. Please verify all information before making a purchase.
